双索双瓣抓斗

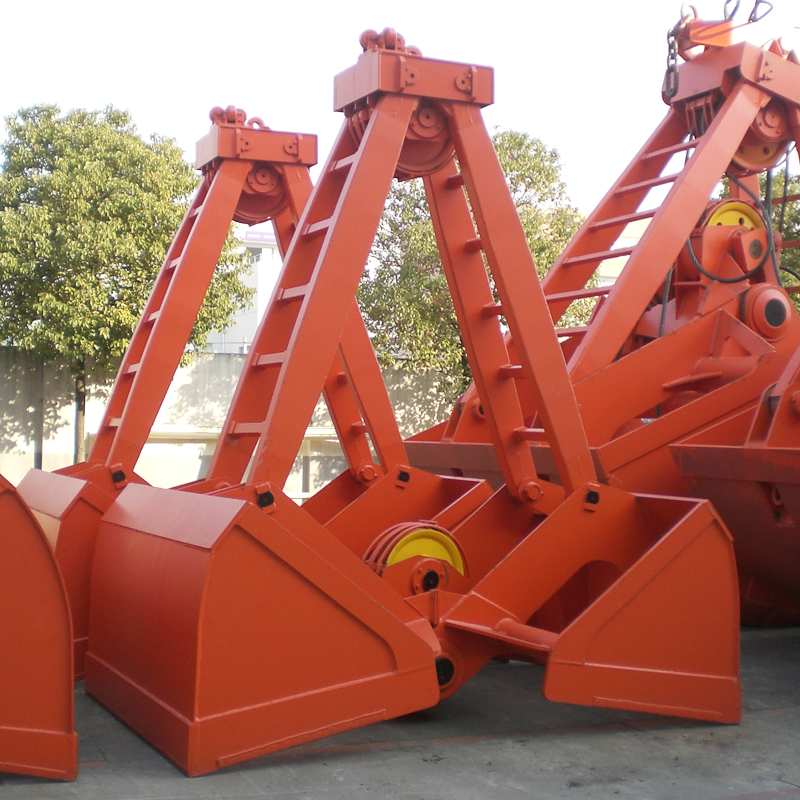

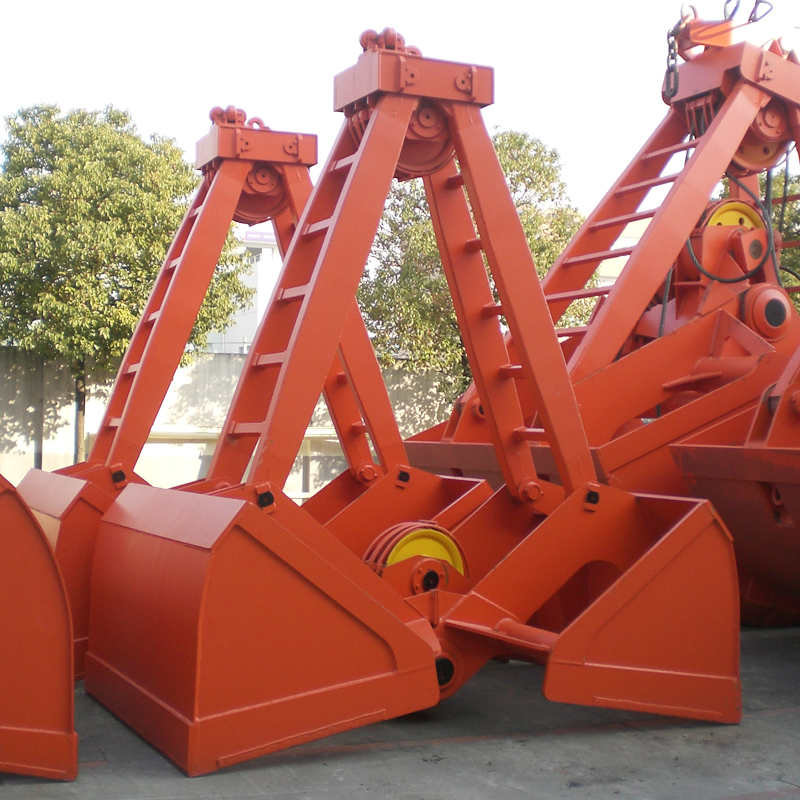

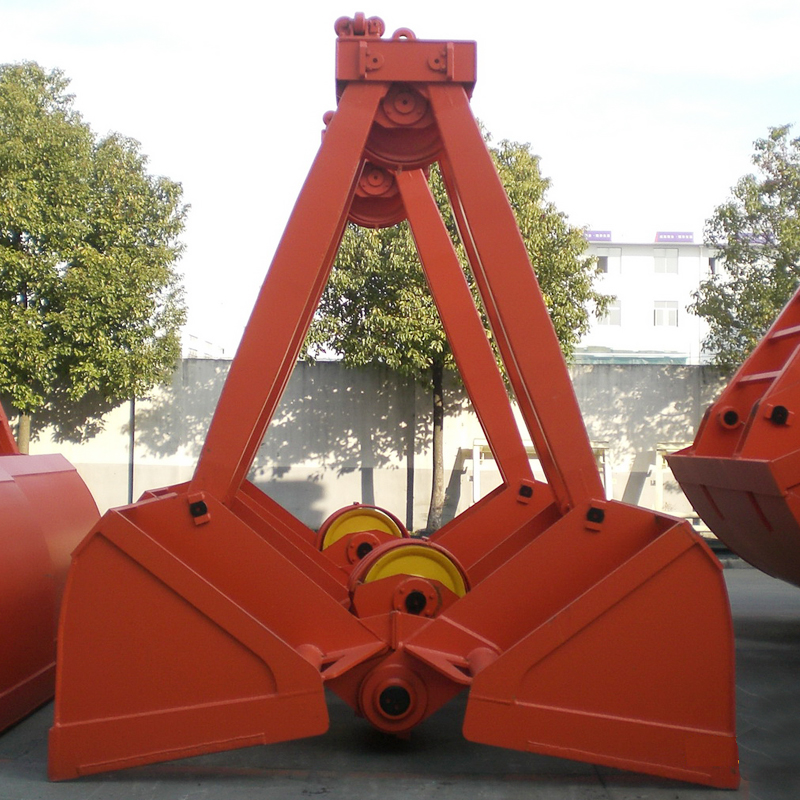

双索双瓣抓斗是一种能在各种恶劣环境下从事黄砂、煤炭、矿粉、散化肥等散货装卸的有效工具。抓斗结构简单,启闭机构新颖,操作方便,能在各种状态下准确地完成启闭动作。抓斗采用三维虚拟设计,并采用ANSYS软件进行强度分析及校核,自重分配更加合理,使用寿命更长。抓斗适用于小型双卷筒起重机装卸各类散货,一般双索散货抓斗起重量不大于16t。抓斗上承梁上配有吊耳,可以与起重机的起升绳卸扣直接连接。

介绍

双索双瓣抓斗是一种能在各种恶劣环境下从事黄砂、煤炭、矿粉、散化肥等散货装卸的有效工具。抓斗结构简单,启闭机构新颖,操作方便,能在各种状态下准确地完成启闭动作。抓斗采用三维虚拟设计,并采用ANSYS软件进行强度分析及校核,自重分配更加合理,使用寿命更长。抓斗适用于小型双卷筒起重机装卸各类散货,一般双索散货抓斗起重量不大于16t。抓斗上承梁上配有吊耳,可以与起重机的起升绳卸扣直接连接。

参数

型   号

Type and Size

斗容m3

(安息角)

Volume

自重t

(倍率)

Dead Weight

外形尺寸(mm) Dimensions 滑轮直径(mm)

Sheave Dia.

使用高度(m)

Use Height

钢丝绳直径(mm)

Steel Rope Dia.

额定起重量t

SWL

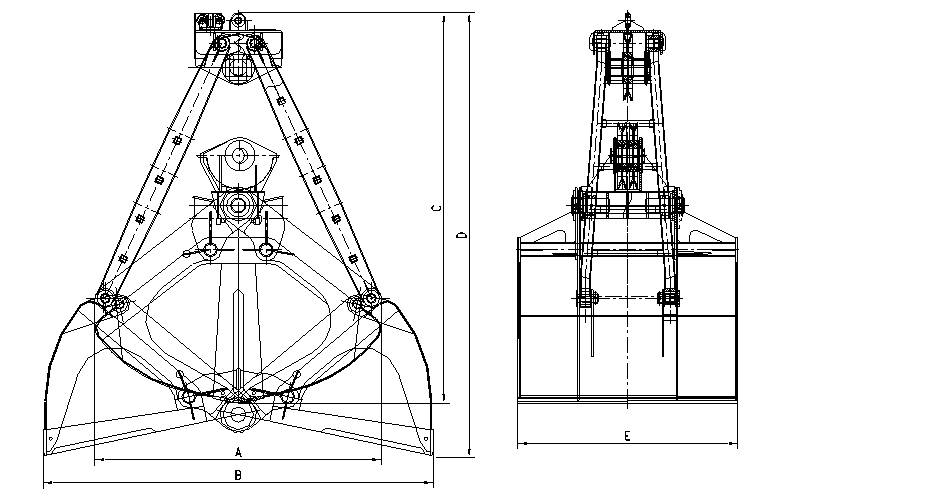

      A B C D E
BS3[1.2]1.3A 1.2(300) 1.4(4) 1900 2537 2488 2841 1200 Æ400 9 Æ17.5 3
BS3[1.6]1.4A 1.6(300) 1.4(4) 2100 2631 2559 3040 1300 Æ400 9.5 Æ17.5 3
BS5[1.5]2A 1.5(350) 2(3) 2000 2659 2667 3075 1260 Æ445 8.5 Æ19.5 5
    2(4)             9.8
BS5[2]2A 2(350) 2(4) 2100 2778 2818 3248 1400 Æ445 10 Æ19.5 5
BS5[2.5]2A 2.5(350) 2(3) 2100 2787 2715 3091 1600 Æ445 8.5 Æ19.5 5
BS5[3]2A 3(400) 2(3) 2300 3130 2938 3362 1650 Æ445 9 Æ19.5 5
BS8[2.6]3.2A 2.6(300) 2.6(4) 2300 3038 3257 3736 1800 Æ560 11 Æ26 8
BS8[3]3.3A 3(300) 3.3(4) 2380 3118 3287 3786 1900 Æ560 11.5 Æ26 8
BS8[3.8]3.5A 3.8(300) 3.5(4) 2550 3536 3286 3733 2000 Æ560 12 Æ26 8
BS8[4.5]3.8A 4.5(300) 3.8(3) 2500 3505 3503 3975 2300 Æ560 12 Æ26 8
BS10[3]4A 3(300) 4(4) 2380 3118 3287 3786 1900 Æ560 11.5 Æ28 10
BS10[5]4A 5(350) 4(4) 2615 3605 3503 3975 2400 Æ560 12 Æ28 10
BS10[6]4A 6(400) 4(4) 2800 3814 3758 4290 2150 Æ560 12.5 Æ28 10
BS16[3.6]6A 3.6(300) 6(5) 2500 3313 3810 4206 2100 Æ720 13.5 Æ32 16
BS16[4]6A 4(350) 6(5) 2500 3313 3810 4206 2200 Æ720 13.5 Æ32 16
BS16[6]6A 6(350) 6(4) 2900 3800 4249 4612 2400 Æ720 13.5 Æ32 16
BS16[10]6A 10(400) 6 (3) 3200 4000 3938 4673 2500 Æ650 12 Æ28 16

注:  1. 表内参数如有改动,不另行通知,  2.可按用户要求设计制造。

应用

  1. Remote Control grab is an efficient tool for loading and unloading bulk cargo. The grab can close by lifting up hook of crane and open by remote control in the air without any additional power. The hydraulic and electric parts use the plug-in modular design, easily maintain and repair, suitable for ship ocean voyages. The Electric system and hydraulic system is water proof design, which can prevent washing of the wave and rain. Each bulk grab is test strictly by immersed under the water 24hours. Multistep buffering opens type, which reduce the impact to the grab from the crane and ensure to unload quickly. The grab can work continuous for 24 hours with low trouble rate. Grab uses less energy, a full battery can keep the use of more than 80 hours. Easy operation, the crane does not need any other auxiliary equipment. The grab can service after being put on the hook. Now the grabs are widely used in bulk vessels, ports, and are exported in batches.
  2. Motor-Hydraulic Bulk Grab has hydraulic power and control system itself, and the hydraulic power system is imported from Europe and USA. The grab uses constant output pump and servo system. The flow of pump can change by itself according to working pressure. When the pressure reaches the max pressure, the flow is almost zero, so it can reduce the overflow, and reduce the temperature rise of oil. The cable rollers are improved designing, the temperature rise of rotating parts will be not higher than 35℃ when it is on full load working, which can ensure the grab can work continually.
  3. Touch-down grab is a single rope grab, it must be put on the ground, cargo or hopper when you open it. After the crane lifts up, the grab will open by itself. The grab has buffers, which can reduce the impact when it opens. The opening and closing system is simple, so it has low fault rate.
  4. When you want to open the Hand-pull grab, you need to pull the towing string, then the grab can open in air. The grab has buffers, which can reduce the impact when it opens. You can pull the towing string in 1800 angle, and the string won’t touch holding steel ropes.
